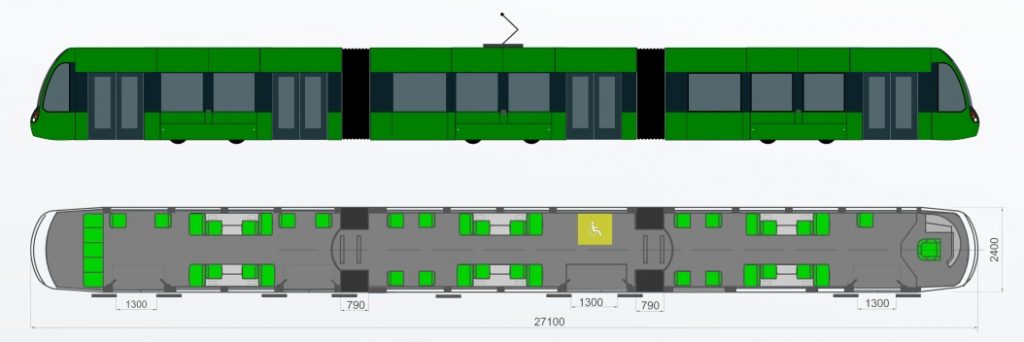

• Length: 27100 mm or 28400/36145 mm
  • Maximum height: 3500 mm
  • W idth : 2400 mm
  • Floor height toward rail/entry door:320 mm
  • Floor height toward rail/gangway: 350mm
  • Number of modules: 3 / 4
  • Air-conditioning: saloons + driver
  • Number of entry doors: 4 / 6
  • Entry door width: 1300 mm
  • Wheel diameter new/worn: 600/ 520 mm
  • Gauge: 1435 / 1000 mm
  • Minimum horizontal curve: 20m
  • Empty car weight: ~37t/~47t
  • Power supply .600 V / 750V DC (20% / 30%)
  • Asynchronous traction motor
  • Engine power 4 x 120 KW / buc
  • Maximum speed 70 km / h

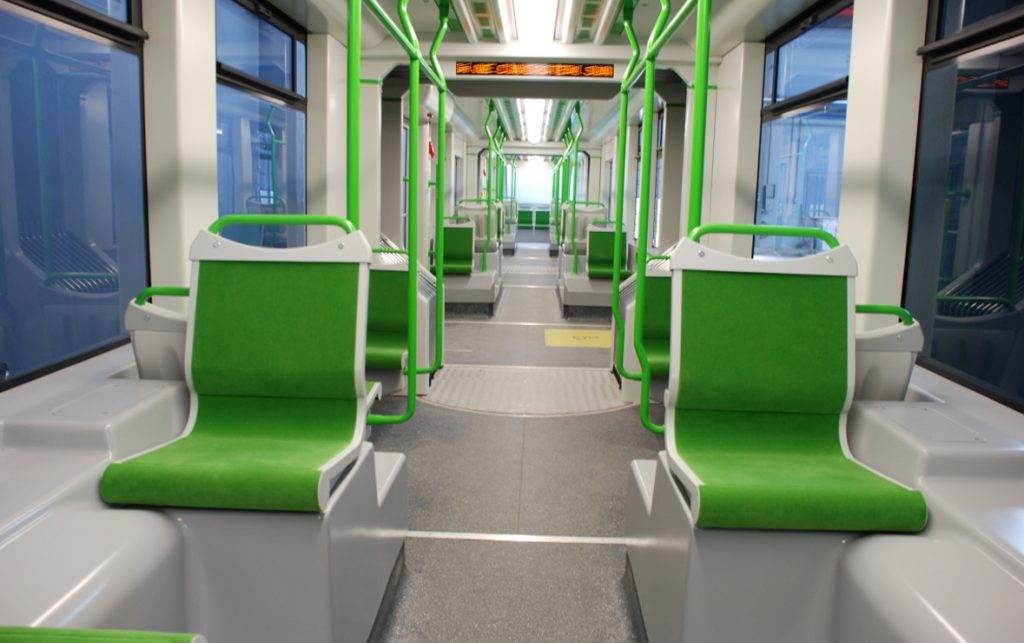

  • Seats 44/56
  • Standings 168/216
